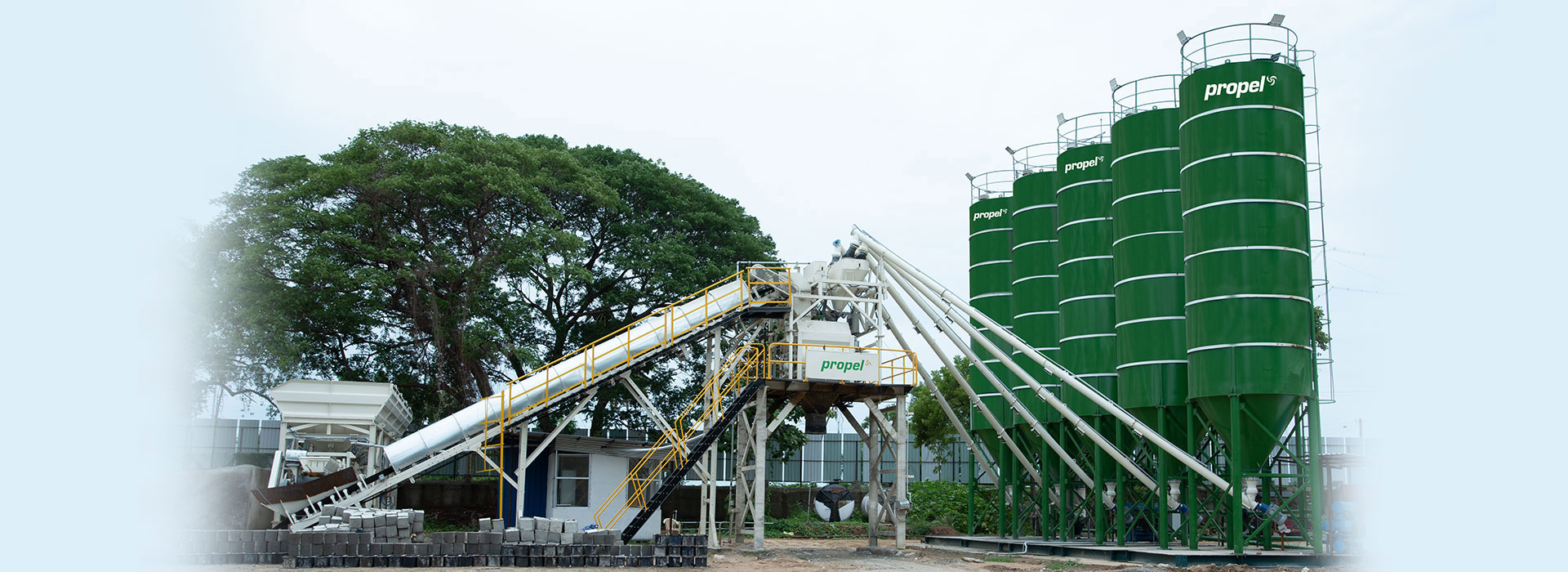

CONCRETE BATCHING SOLUTIONS
PRO SERIES 30 TCI | 45 TCI | 60 TCI | 75 TCI | 90 TCI | 120 TCI
The Pro-Series of Propel Batching plant is sure to meet all your business requirements. Our team will provide end-to-end custom-made solutions!
Know Better
Propel Industries provides innovative, technologically-sound and cost-effective solutions to the crushing and screening industry. We are the strategic business division of the 62-year-old Coimbatore-based AV Group. We provide a comprehensive range of products with high reliability. Enhanced performance and versatile applications at optimal costs has made us the market leaders.
Indigenously developed for the concrete industry
Customised solutions for your needs
WATCH VIDEO
TECHNICAL DATA
DESCRIPTION | UNITS | PRO 30 TSM / TCI | PRO 45 TCI | PRO 60 TCI | PRO 75 TCI | PRO 90 TCI | PRO 120 TCI |
---|---|---|---|---|---|---|---|
Theoretical Output | m3/h | 30 | 45 | 60 | 75 | 90 | 120 |
Mixer Size | L | 750 /500 | 1125/750 | 1500/1000 | 1875/1250 | 3000/2000 | 4500/3000 |
Mixer Type | Twin Shaft / Planetary Mixer | Twin Shaft | Twin Shaft | Twin Shaft | |||
Maximum size of aggregate* | mm | 40 | 60 | 80 | 80 | 80 | 80 |
Storage Bin Capacity | m3 | 22 / 33 | 48 | 48 / 60 | 60 | 90 | 120 |
Inline Bin Configuration | 4 | 4/5* | 4/5* | 4/5* | 4/5* | 4/5* | |
Loading Options | Conveyor to Skip / Conveyor to Conveyor | Conveyor to Conveyor | |||||
Aggregate Weighing System | kg | 1200 | 1800 | 2500 | 3150 | 5500 | 7600 |
Cement / Filler Weighing System | kg | 350 | 525 | 700 | 700 | 1350 | 1800 |
Water Weighing System | kg | 150 | 250 | 400 | 400 | 680 | 900 |
Admixture Weighing System | kg | 12 | 2 x 12 | ||||
Screw Conveyor Size | mm / m | Ø168 /10 | Ø219/10 | Ø219/12 | Ø219/12 | Ø273/12 | Ø273-Ø323/12 |
Air Compressor Power | kW | 3.7 | 5.5 | 5.5 | 7.5 | 10 | 10 |
Silica / Ice weighing system | N/A | Optional* | |||||
Waiting Hopper System | N/A | Optional* | |||||
Control System | Fully Automatic SCADA based PLC system with computer and printer |
*Attracts additional cost and delivery time
- Specific mixer can be configured, as per customer’s requirement.
- Silo and its accessories, chilling unit, weighbridge and diesel generators can also be supplied based on customer’s requirement.
- Though the technical parameters mentioned are standard scope of supply, It can be modified based on mutual agreement.

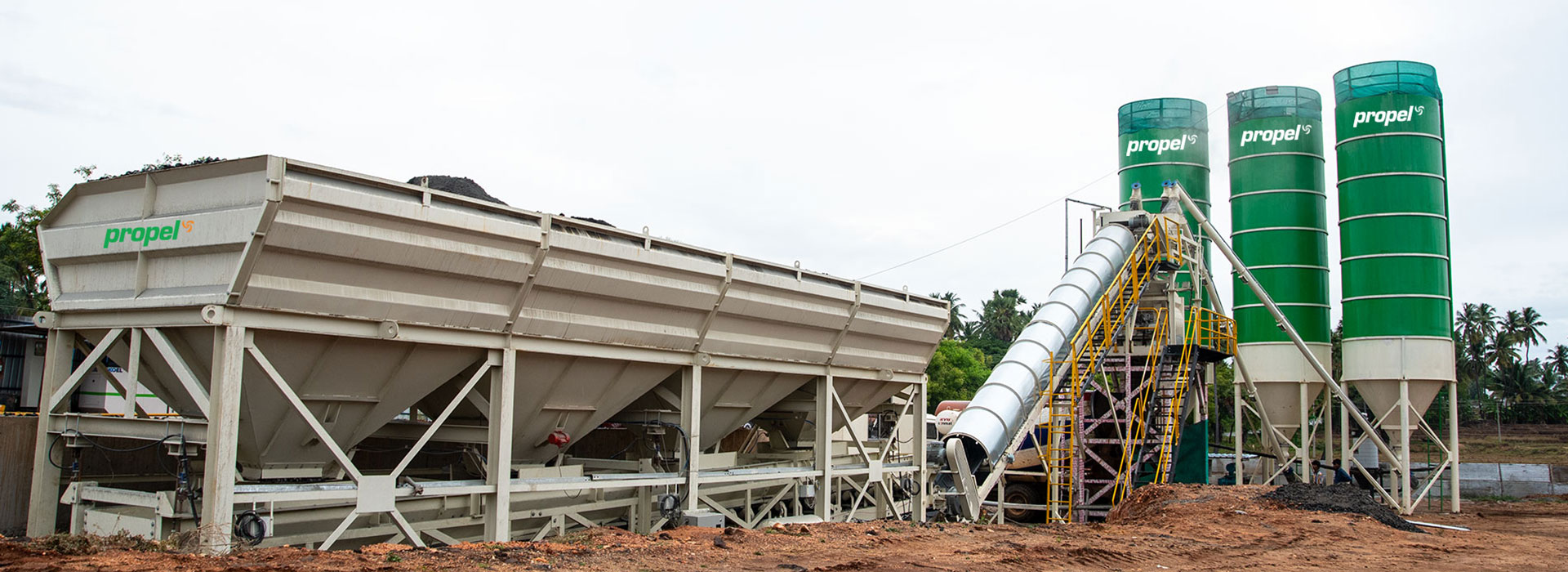

PLANT INSTALLATION
