In-Depth Track Mounted Endurer(QM250 S)
Inside-Out | October 20, 2022

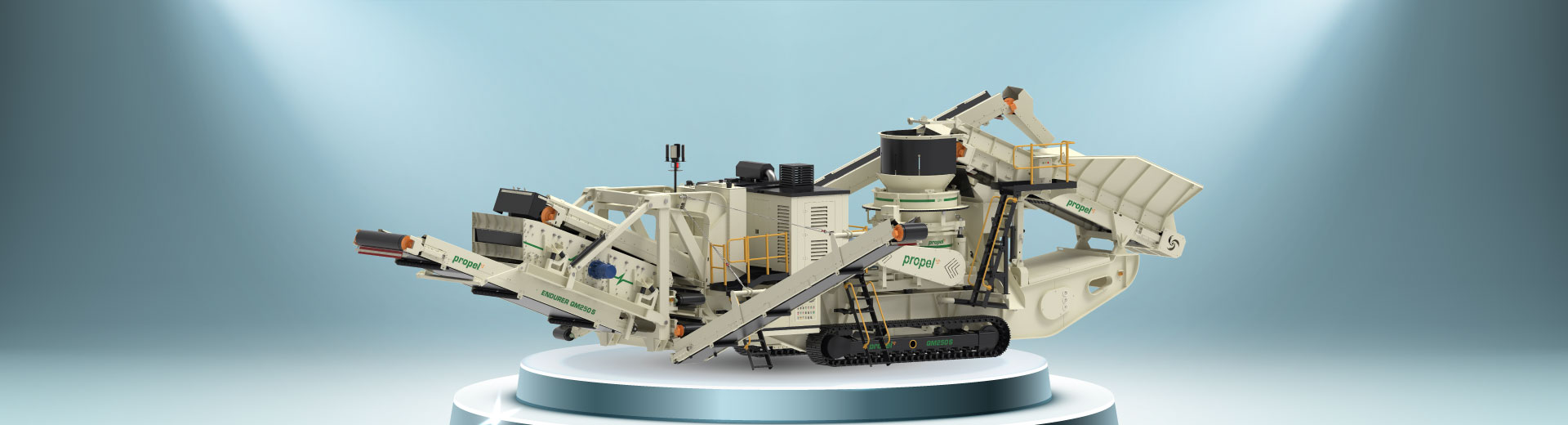

Propel ENDURER QM250 S is designed to maximise throughput and product shape in a wide range of crushing applications. The inclusion of a plant mounted double deck vibrating screen allows for oversize material to be recirculated for recrushing and for sized end products. Its cost effectiveness is justified by its low fuel consumption, low operating and maintenance costs as well as high capacity. It has a lower carbon footprint and is environmentally friendly.
Cone Crusher
Propel QM series Cone Crushers combine the best power utilization per cone diameter, cavity design of higher density, optimized crusher speed and efficient throw. The higher cavity density improves the inter-particle crushing action.
Feed Conveyor
Feed conveyor of Track Cone is responsible for transferring material from Jaw crusher to cone crusher. The conveyor consists of hopper plates made up of Hardox 400, replaceable rock box arrangement, motorized pulley, metal detector and cone feed level sensor.
Metal detector
The metal detector system 3000 is designed to detect medium and large pieces of metal. This system has a very effective means of adjusting sensitivity and consists of an amplifier and an inductive detector coil, this prevents the metal pieces from entering the crusher by ringing the alarm and stopping the feeding conveyor.
Telescopic Assembly
Telescopic system is designed to lower the feed conveyor assembly for transport and lift hydraulically for operation and crusher maintenance.
Chassis
Heavy duty I-section welded construction provides maximum strength & accessibility with spacious walkway for easy accessibility.
Main Conveyor
Main conveyor is responsible for conveying material from Cone Crusher to Screen, it consists of motorized pulley, nip guide and endless belt
Screen
Propel Vibrating Screen 1837 is a 3 product mobile screen with effective screening area of 6.6m2 in top deck and 6.2m2 in second deck. Circular motion created by flange mounted vibromotor which offers maintenance free operation. It handles maximum feed size up to 150 mm and handles material capacity up to 250 TPH in feed.
Tail Conveyor
Tail conveyor conveys fines materials from Screen as an end product.
Upper transfer conveyor
Upper transfer conveyor conveys screen top deck materials to recirculating conveyor.
Lower transfer conveyor
Lower transfer conveyor conveys screen bottom deck materials to stockpile conveyor.
Recirculating conveyor
Recirculating conveyor conveys materials from upper transfer conveyor to feed conveyor hopper.
Stockpile conveyor
Stockpile conveyor conveys materials from lower transfer conveyor as an end product
Motorized Pulley
Endurer QM 250 S conveyors are attached with motorized pulley; up to 95% of the output power.produced by the motor is typically transmitted to the drum shell and it consumes less space and is completely free from water, dust, chemicals, grease, oil, etc.
Engine Package
The engine package consists of Engine & Alternator coupled that powers the entire equipment and safeguards from dust, noise& rain.
Diesel Tank
The diesel tank is used to store diesel fuel for engine consumption. It is equipped with level indication and filler breather. Diesel tank is of capacity 720 litres.
Hydraulic Control Unit
The hydraulic control unit generates and adjusts this hydraulic pressure and switches its passage. The control unit provides several pressure levels with varying priority. The line pressure control valve is governed by a solenoid and controls line pressure.
Hydraulic Power pack
The purpose of the hydraulic reservoir is to hold a volume of fluid, transfer heat from the system, allow solid contaminants to settle and facilitate the release of air and moisture from the fluid. Hydraulic tank is of capacity 400 litres.
Crawler
Undercarriage is the part of a moving vehicle that is underneath the main body of the vehicle. Crawlers are heavy-duty machines specifically developed for the transport and relocation of heavy mining equipment or processing plant equipment.
Radio Remote control
Radio Remote Controller is used as application for Track Crawler moving .In radio control system, a command is transmitted from the operator to the receiver (located in the control panel).Radio signal can transmit around 30m distance from the machine.
Change Over Switch Panel
Change over switch is designed to transfer electricity from the commercial power grid to a local generator when outage occurs .Also known as transfer switches, they connect directly to the generator, commercial power supply or line.
Electrical Control Panel (IP55)
Electrical control panel designed with double door arrangements (RITTAL) is dust proof and water proof with IP55 certification and mounted in the machine. The machine is controlled by electrical operation through the operating panel. The operation has Manual Mode and Auto Mode functions implemented in the panel by HMI display.
Engine Controller (DSE4520 SERIES)
Engine Controller device controls the Engine Start/Stop and electrical parameters are shown in the display which are set as per our applications.
Electrical conveyor panel (IP55)
Electrical conveyor panel designed with single door arrangements (RITTAL) is dust proof and water proof with IP55 certification and mounted in the machine. The conveyors are controlled by main electrical control panel through interface cables. The operations are through Manual Mode or Auto Mode functions implemented in the control panel by HMI display.
Electrical power panel (IP55)
Electrical power panel designed with double door arrangements (RITTAL) is dust proof and water proof with IP55 certification and mounted in the machine. The power panel has main equipment power contactor and hydraulic motor contactor which are controlled by electrical operation through interfacing with the electrical control panel.The operation is through Manual Mode or Auto Mode functions implemented in the control panel by HMI display.
